RTD Extension Cable 7/0.2mm dia Twisted Screened Construction

view larger image

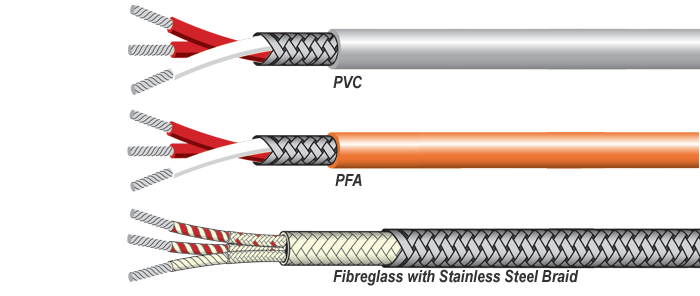

We supply 7/0.2mm dia RTD extension cable in either 25, 50, 100 or 200 metre lengths. Two, three, four or six cores are supplied and insulated in either Heat Resistant PVC or PFA or Stainless Steel Braided Fibreglass. The cores are then twisted, screened, and overall sheathed in the same material.
  • 2, 3, 4 or 6 cores of 7/0.2mm dia twisted conductors, PVC version has a tinned copper braid and is then overall PVC sheathed. PFA version has a nickel plated copper braid and is then overall sheathed. Fibreglass version is fibreglass braided then stainless steel braided overall.
  • Temperature rated as follows Heat Resistant PVC 105°C, PFA 250°C and Fibreglass 480°C
  • Cores colour coded :-
    2 cores: 1 core red and 1 core white
    3 cores: 2 cores red and 1 core white
    4 cores: 2 cores red and 2 cores white
    6 cores: 4 cores red and 2 cores white
  • Outer sheath PVC - Grey, PFA - Orange or Black and Fibreglass is stainless steel
  • Available in a variety of lengths
  • Easy connection to our range of sensors via our connector systems or the rear terminals on our indicators, controllers and programmers all of which can be found elsewhere in this catalogue.
The following types are available:
2 Core RTD Twisted Screened Extension Cable
Order Code Description 1 - 4 5 - 9 10+ Buy
835-001 25 metre reel - PVC $41.70 $38.50 $35.60 Add
835-003 50 metre reel - PVC $72.00 $66.00 $61.00 Add
835-005 100 metre reel - PVC $135.00 $125.00 $115.00 Add
835-007 200 metre reel - PVC $252.00 $233.00 $215.00 Add
835-011 25 metre reel - PFA (Orange Sheath) $124.00 $114.00 $105.00 Add
835-013 50 metre reel - PFA (Orange Sheath) $224.00 $206.00 $191.00 Add
835-015 100 metre reel - PFA (Orange Sheath) $428.00 $394.00 $364.00 Add
835-017 200 metre reel - PFA (Orange Sheath) $806.00 $742.00 $686.00 Add
835-021 25 metre reel - PFA (Black Sheath) $124.00 $114.00 $105.00 Add
835-023 50 metre reel - PFA (Black Sheath) $224.00 $206.00 $191.00 Add
835-025 100 metre reel - PFA (Black Sheath) $428.00 $394.00 $364.00 Add
835-027 200 metre reel - PFA (Black Sheath) $806.00 $742.00 $686.00 Add
3 Core RTD Twisted Screened Extension Cable
Order Code Description 1 - 4 5 - 9 10+ Buy
835-103 25 metre reel - PVC $57.00 $52.00 $47.80 Add
835-105 50 metre reel - PVC $96.00 $88.00 $81.00 Add
835-107 100 metre reel - PVC $175.00 $161.00 $150.00 Add
835-109 200 metre reel - PVC $316.00 $290.00 $268.00 Add
835-113 25 metre reel - PFA (Orange Sheath) $177.00 $162.00 $151.00 Add
835-115 50 metre reel - PFA (Orange Sheath) $307.00 $282.00 $261.00 Add
835-117 100 metre reel - PFA (Orange Sheath) $559.00 $515.00 $475.00 Add
835-119 200 metre reel - PFA (Orange Sheath) $964.00 $887.00 $819.00 Add
835-031 25 metre reel - PFA (Black Sheath) $177.00 $162.00 $151.00 Add
835-033 50 metre reel - PFA (Black Sheath) $307.00 $282.00 $261.00 Add
835-035 100 metre reel - PFA (Black Sheath) $559.00 $515.00 $475.00 Add
835-037 200 metre reel - PFA (Black Sheath) $964.00 $887.00 $819.00 Add
835-123 25 metre reel - Fibreglass/Stainless Steel Braided $139.00 $128.00 $118.00 Add
835-125 50 metre reel - Fibreglass/Stainless Steel Braided $265.00 $243.00 $225.00 Add
835-127 100 metre reel - Fibreglass/Stainless Steel Braided $457.00 $421.00 $388.00 Add
835-129 200 metre reel - Fibreglass/Stainless Steel Braided $860.00 $791.00 $731.00 Add
4 Core RTD Twisted Screened Extension Cable
Order Code Description 1 - 4 5 - 9 10+ Buy
835-303 25 metre reel - PVC $61.00 $56.00 $52.00 Add
835-305 50 metre reel - PVC $104.00 $96.00 $88.00 Add
835-307 100 metre reel - PVC $196.00 $180.00 $167.00 Add
835-309 200 metre reel - PVC $346.00 $318.00 $294.00 Add
835-313 25 metre reel - PFA (Orange Sheath) $191.00 $175.00 $162.00 Add
835-315 50 metre reel - PFA (Orange Sheath) $343.00 $316.00 $292.00 Add
835-317 100 metre reel - PFA (Orange Sheath) $614.00 $565.00 $522.00 Add
835-319 200 metre reel - PFA (Orange Sheath) $1,078.00 $993.00 $917.00 Add
835-041 25 metre reel - PFA (Black Sheath) $191.00 $175.00 $162.00 Add
835-043 50 metre reel - PFA (Black Sheath) $343.00 $316.00 $292.00 Add
835-045 100 metre reel - PFA (Black Sheath) $614.00 $565.00 $522.00 Add
835-047 200 metre reel - PFA (Black Sheath) $1,078.00 $993.00 $917.00 Add
835-323 25 metre reel - Fibreglass/Stainless Steel Braided $192.00 $177.00 $164.00 Add
835-325 50 metre reel - Fibreglass/Stainless Steel Braided $366.00 $336.00 $310.00 Add
835-327 100 metre reel - Fibreglass/Stainless Steel Braided $633.00 $583.00 $538.00 Add
835-329 200 metre reel - Fibreglass/Stainless Steel Braided $1,198.00 $1,103.00 $1,019.00 Add
6 Core RTD Twisted Screened Extension Cable
Order Code Description 1 - 4 5 - 9 10+ Buy
835-203 25 metre reel - PVC $83.00 $77.00 $71.00 Add
835-205 50 metre reel - PVC $152.00 $140.00 $129.00 Add
835-207 100 metre reel - PVC $290.00 $267.00 $247.00 Add
835-209 200 metre reel - PVC $530.00 $488.00 $451.00 Add
835-211 25 metre reel - PFA (Orange Sheath) $208.00 $192.00 $177.00 Add
835-213 50 metre reel - PFA (Orange Sheath) $377.00 $347.00 $321.00 Add
835-215 100 metre reel - PFA (Orange Sheath) $690.00 $634.00 $586.00 Add
835-217 200 metre reel - PFA (Orange Sheath) $1,309.00 $1,205.00 $1,114.00 Add
835-051 25 metre reel - PFA (Black Sheath) $208.00 $192.00 $177.00 Add
835-053 50 metre reel - PFA (Black Sheath) $377.00 $347.00 $321.00 Add
835-055 100 metre reel - PFA (Black Sheath) $690.00 $634.00 $586.00 Add
835-057 200 metre reel - PFA (Black Sheath) $1,309.00 $1,205.00 $1,114.00 Add
835-219 25 metre reel - Fibreglass/Stainless Steel Braided $248.00 $228.00 $211.00 Add
835-221 50 metre reel - Fibreglass/Stainless Steel Braided $464.00 $427.00 $395.00 Add
835-223 100 metre reel - Fibreglass/Stainless Steel Braided $809.00 $745.00 $687.00 Add
835-225 200 metre reel - Fibreglass/Stainless Steel Braided $1,529.00 $1,407.00 $1,300.00 Add
