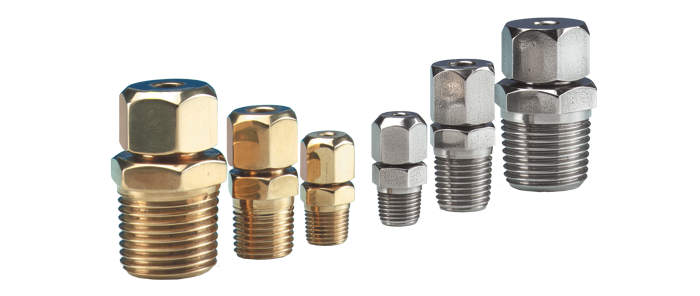

Adjustable Compression Fittings

Adjustable Compression Fittings view larger image
Our range of adjustable compression fittings are available in either brass or stainless steel. They are used to ensure the correct insertion length into the process and provide some degree of resistance to pressure applications. Fittings are offered with a tapered thread for a tight seal and are also available with a parallel thread.
The following types are available:

Stainless Steel Compression Fittings - Tapered Thread

Order Code Description 1 - 9 10 - 24 25+ Buy
875-444 0.5mm x 1/8" BSPT Stainless Steel $29.10 $26.60 $24.30 Add
875-445 0.75mm x 1/8" BSPT Stainless Steel $29.10 $26.60 $24.30 Add
875-446 1.0mm x 1/8" BSPT Stainless Steel $12.00 $11.40 $10.40 Add
875-450 1.5mm x 1/8" BSPT Stainless Steel $12.00 $11.40 $10.40 Add
875-452 1.5mm x 1/8" NPT Stainless Steel $12.00 $11.40 $10.40 Add
875-454 1.5mm x 1/4" BSPT Stainless Steel $16.40 $15.30 $13.90 Add
875-456 1.5mm x 1/4" NPT Stainless Steel $16.40 $15.30 $13.90 Add
875-458 1.5mm x 1/2" BSPT Stainless Steel $22.40 $20.60 $18.70 Add
875-462 3.0mm x1/8" BSPT Stainless Steel $12.00 $11.40 $10.40 Add
875-464 3.0mm x1/8" NPT Stainless Steel $12.00 $11.40 $10.40 Add
875-466 3.0mm x1/4" BSPT Stainless Steel $16.40 $15.30 $13.90 Add
875-468 3.0mm x1/4" NPT Stainless Steel $16.40 $15.30 $13.90 Add
875-470 3.0mm x1/2" BSPT Stainless Steel $22.40 $20.60 $18.70 Add
875-472 3.0mm x1/2" NPT Stainless Steel $22.40 $20.60 $18.70 Add
875-474 4.5mm x 1/8" BSPT Stainless Steel $12.00 $11.40 $10.40 Add
875-476 4.5mm x 1/8" NPT Stainless Steel $12.00 $11.40 $10.40 Add
875-478 4.5mm x 1/4" BSPT Stainless Steel $16.40 $15.30 $13.90 Add
875-482 4.5mm x 1/2" BSPT Stainless Steel $22.40 $20.60 $18.70 Add
875-484 4.5mm x 1/2" NPT Stainless Steel $22.40 $20.60 $18.70 Add
875-486 6.0mm x1/8" BSPT Stainless Steel $12.00 $11.40 $10.40 Add
875-488 6.0mm x1/8" NPT Stainless Steel $12.00 $11.40 $10.40 Add
875-490 6.0mm x1/4" BSPT Stainless Steel $16.40 $15.30 $13.90 Add
875-492 6.0mm x1/4" NPT Stainless Steel $16.40 $15.30 $13.90 Add
875-493 6.0mm x3/8" BSPT Stainless Steel $17.00 $15.80 $14.30 Add
875-494 6.0mm x1/2" BSPT Stainless Steel $22.40 $20.60 $18.70 Add
875-495 6.0mm x1/2" NPT Stainless Steel $22.40 $20.60 $18.70 Add
875-496 6.0mm x3/4" BSPT Stainless Steel $37.40 $34.30 $31.40 Add
875-498 8.0mm x 1/4" BSPT Stainless Steel $16.40 $15.30 $13.90 Add
875-500 8.0mm x 1/4" NPT Stainless Steel $16.40 $15.30 $13.90 Add
875-501 8.0mm x 3/8" BSPT Stainless Steel $17.00 $15.80 $14.30 Add
875-502 8.0mm x 1/2" BSPT Stainless Steel $22.40 $20.60 $18.70 Add
875-506 8.0mm x 1/2" NPT Stainless Steel $22.40 $20.60 $18.70 Add
875-510 8.0mm x 3/4" BSPT Stainless Steel $37.40 $34.30 $31.40 Add
409-480 12.7mm x 1/2" BSPT Stainless Steel $37.40 $34.30 $31.40 Add
875-518 12.7mm x 3/4" BSPT Stainless Steel $37.40 $34.30 $31.40 Add
409-486 15.9mm x 1/2" BSPT Stainless Steel $37.40 $34.30 $31.40 Add
875-526 15.9mm x 3/4" BSPT Stainless Steel $44.70 $40.70 $37.40 Add
409-492 21.3mm x 3/4" BSPT Stainless Steel $73.00 $66.00 $61.00 Add
875-670 Spare Olive for 1.0mm St/Steel Fitting - Packs of 10 $31.40 $28.60 $26.30 Add
875-672 Spare Olive for 1.5mm St/Steel Fitting (1/8" Fitting) - Packs of 10 $31.40 $28.60 $26.30 Add
875-674 Spare Olive for 3.0mm St/Steel Fitting (1/8" Fitting) - Packs of 10 $31.40 $28.60 $26.30 Add
875-676 Spare Olive for 3.0mm St/Steel Fitting (1/4" or 1/2" Fitting) - Packs of 10 $31.40 $28.60 $26.30 Add
875-678 Spare Olive for 4.5mm St/Steel Fitting - Packs of 10 $31.40 $28.60 $26.30 Add
875-680 Spare Olive for 6.0mm St/Steel Fitting - Packs of 10 $31.40 $28.60 $26.30 Add
875-682 Spare Olive for 8.0mm St/Steel Fitting - Packs of 10 $31.40 $28.60 $26.30 Add

Stainless Steel Compression Fittings - Parallel Thread

Order Code Description 1 - 9 10 - 24 25+ Buy
875-550 3.0mm x1/4" BSPP St/Steel $16.40 $15.30 $13.90 Add
875-554 3.0mm x1/2" BSPP St/Steel $22.40 $20.60 $18.70 Add
875-560 4.5mm x 1/2" BSPP St/Steel $22.40 $20.60 $18.70 Add
875-570 6.0mm x1/4" BSPP St/Steel $16.40 $15.30 $13.90 Add
875-574 6.0mm x1/2" BSPP St/Steel $22.40 $20.60 $18.70 Add
875-580 8.0mm x 1/2" BSPP St/Steel $22.40 $20.60 $18.70 Add

Brass Compression Fittings - Tapered Thread

Order Code Description 1 - 9 10 - 24 25+ Buy
875-196 1.0mm x 1/8" BSPT Brass $10.20 $9.20 $8.60 Add
875-200 1.5mm x 1/8" BSPT Brass $10.20 $9.20 $8.60 Add
875-202 1.5mm x 1/8" NPT Brass $10.20 $9.20 $8.60 Add
875-204 1.5mm x 1/4" BSPT Brass $10.70 $9.80 $8.90 Add
875-206 1.5mm x 1/4" NPT Brass $10.70 $9.80 $8.90 Add
875-208 1.5mm x 1/2" BSPT Brass $15.30 $13.90 $12.80 Add
875-212 3.0mm x1/8" BSPT Brass $10.20 $9.20 $8.60 Add
875-214 3.0mm x1/8" NPT Brass $10.20 $9.20 $8.60 Add
875-216 3.0mm x1/4" BSPT Brass $10.70 $9.80 $8.90 Add
875-218 3.0mm x1/4" NPT Brass $10.70 $9.80 $8.90 Add
875-220 3.0mm x1/2" BSPT Brass $15.30 $13.90 $12.80 Add
875-222 3.0mm x1/2" NPT Brass $15.30 $13.90 $12.80 Add
875-224 4.5mm x 1/8" BSPT Brass $10.20 $9.20 $8.60 Add
875-226 4.5mm x 1/8" NPT Brass $10.20 $9.20 $8.60 Add
875-228 4.5mm x 1/4" BSPT Brass $10.70 $9.80 $8.90 Add
875-230 4.5mm x 1/4" NPT Brass $10.70 $9.80 $8.90 Add
875-232 4.5mm x 1/2" BSPT Brass $15.30 $13.90 $12.80 Add
875-234 4.5mm x 1/2" NPT Brass $15.30 $13.90 $12.80 Add
875-236 6.0mm x1/8" BSPT Brass $10.20 $9.20 $8.60 Add
875-238 6.0mm x1/8" NPT Brass $10.20 $9.20 $8.60 Add
875-240 6.0mm x1/4" BSPT Brass $10.70 $9.80 $8.90 Add
875-242 6.0mm x1/4" NPT Brass $10.70 $9.80 $8.90 Add
875-244 6.0mm x1/2" BSPT Brass $15.30 $13.90 $12.80 Add
875-246 6.0mm x1/2" NPT Brass $15.30 $13.90 $12.80 Add
875-248 8.0mm x 1/4" BSPT Brass $10.70 $9.80 $8.90 Add
875-250 8.0mm x 1/4" NPT Brass $10.70 $9.80 $8.90 Add
875-252 8.0mm x 1/2" BSPT Brass $15.30 $13.90 $12.80 Add
875-254 8.0mm x 1/2" NPT Brass $15.30 $13.90 $12.80 Add
875-330 Spare Olive for 1.0mm Brass Fitting - packs of 10 $30.60 $28.10 $25.70 Add
875-332 Spare Olive for 1.5mm Brass Fitting - packs of 10 $30.60 $28.10 $25.70 Add
875-334 Spare Olive for 3.0mm Brass Fitting (1/8" Fitting) - packs of 10 $30.60 $28.10 $25.70 Add
875-336 Spare Olive for 3.0mm Brass Fitting (1/4" or 1/2" Fitting) - packs of 10 $30.60 $28.10 $25.70 Add
875-338 Spare Olive for 4.5mm Brass Fitting - packs of 10 $30.60 $28.10 $25.70 Add
875-340 Spare Olive for 6.0mm Brass Fitting - packs of 10 $30.60 $28.10 $25.70 Add
875-342 Spare Olive for 8.0mm Brass Fitting - packs of 10 $30.60 $28.10 $25.70 Add
