High Density Feedthrough Assemblies for Thermocouple, RTD or Equipment Wire Applications

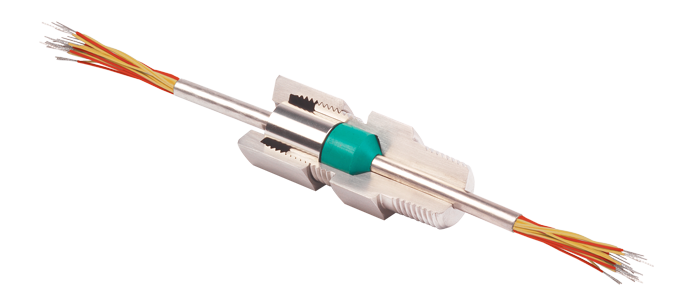

Our feedthrough assemblies comprise a high density wire feedthrough sealed with a sealing gland. A PTFE lined stainless steel tube is swaged over 12, 24, 40 or 60 bundled solid 0.5mm diameter, PTFE insulated Thermocouple or Copper conductors to make the high density feedthrough. The swaged tube is then mounted in a sealing gland. Assemblies are supplied with 600mm of wire on each side of the feedthrough, however, longer leads can be made to order)

Continuous wire feedthroughs for thermocouples types K, T, J or N (others thermocouple types available on request), 2,3 or 4 wire RTD's as well as other low voltage signalling requiring copper leads
12, 24, 40 or 60 bundled solid 0.5mm diameter, PTFE insulated Thermocouple or Copper conductors
No epoxy or potting required
Feedthrough tube diameters are: 4.5mm: 6 T/C's or 4 three wire RTD's or 12 equipment wires 6.0mm: 12 T/C's or 8 three wire RTD's or 24 equipment wires 8.0mm: 20 T/C's or 13 three wire RTD's or 40 equipment wires 10.0mm: 30 T/C's or 20 three wire RTD's or 60 equipment wires
Offered as standard with a PTFE Sealant, however, other sealants including Neoprene, Viton and Lava are also available
Suited for pressure applications up to 350 bar @20°C
Leak rate: 1x10^-6 cm3/sec, Helium @20°C, 1 Atm supplied
Ideal for use in vacuum applications and are rated to 6.67 x 10^-4 Pa (6.67 x 10^-6 mbar) for assemblies with Neoprene, Viton or PFA® sealants. Lava sealants are not recommended for use in vacuum applications
Tube length is typically 80 or 100mm, but can be made to suit customers requirements
All wires are marked on each side of the feedthrough for identification
A full custom build assembly service available on request where the following options can be chosen to order. Other thermocouple types, alternative sealants such as Neoprene, Viton or Lava, alternative thread sizes, differing tube lengths and lead lengths, a specific number of wires as well as a mixture of thermocouple and equipment wires within the same assembly
Temperature rated -40°C to +125°C
Electrically rated 100V DC @ 500 Ma
316L Body (and seat where applicable). Follower and cap in 303 or 304

The following types are available:

For use with Type K Thermocouples
For use with Type T Thermocouples
For use with Type J Thermocouples
For use with Type N Thermocouples
For use with RTD's or Equipment Wiring

For use with Type K Thermocouples

Order Code	Description	1 - 9	10 - 19	20+	Buy
946-504	6 pairs - 1/4" BSPT – 200 bar	$796.00	$726.00	$664.00	Add
946-507	12 pairs - 1/4" BSPT – 150 bar	$915.00	$834.00	$765.00	Add
946-510	20 pairs - 1/2" BSPT – 150 bar	$1,124.00	$1,024.00	$938.00	Add
946-513	30 pairs - 1/2" BSPT – 100 bar	$1,335.00	$1,217.00	$1,116.00	Add
945-504	6 pairs - 1/4" NPT – 200 bar	$796.00	$726.00	$664.00	Add
945-507	12 pairs - 1/4" NPT – 150 bar	$915.00	$834.00	$765.00	Add
945-510	20 pairs - 1/2" NPT – 150 bar	$1,124.00	$1,024.00	$938.00	Add
945-513	30 pairs - 1/2" NPT – 100 bar	$1,335.00	$1,217.00	$1,116.00	Add

For use with Type T Thermocouples

Order Code	Description	1 - 9	10 - 19	20+	Buy
946-526	6 pairs - 1/4" BSPT – 200 bar	$796.00	$726.00	$664.00	Add
946-529	12 pairs - 1/4" BSPT – 150 bar	$915.00	$834.00	$765.00	Add
946-532	20 pairs - 1/2" BSPT – 150 bar	$1,124.00	$1,024.00	$938.00	Add
946-535	30 pairs - 1/2" BSPT – 100 bar	$1,335.00	$1,217.00	$1,116.00	Add
945-526	6 pairs - 1/4" NPT – 200 bar	$796.00	$726.00	$664.00	Add
945-529	12 pairs - 1/4" NPT – 150 bar	$915.00	$834.00	$765.00	Add
945-532	20 pairs - 1/2" NPT – 150 bar	$1,124.00	$1,024.00	$938.00	Add
945-535	30 pairs - 1/2" NPT – 100 bar	$1,335.00	$1,217.00	$1,116.00	Add

For use with Type J Thermocouples

Order Code	Description	1 - 9	10 - 19	20+	Buy
946-552	6 pairs - 1/4" BSPT – 200 bar	$796.00	$726.00	$664.00	Add
946-555	12 pairs - 1/4" BSPT – 150 bar	$915.00	$834.00	$765.00	Add
946-558	20 pairs - 1/2" BSPT – 150 bar	$1,124.00	$1,024.00	$938.00	Add
946-561	30 pairs - 1/2" BSPT – 100 bar	$1,335.00	$1,217.00	$1,116.00	Add
945-552	6 pairs - 1/4" NPT – 200 bar	$796.00	$726.00	$664.00	Add
945-555	12 pairs - 1/4" NPT – 150 bar	$915.00	$834.00	$765.00	Add
945-558	20 pairs - 1/2" NPT – 150 bar	$1,124.00	$1,024.00	$938.00	Add
945-561	30 pairs - 1/2" NPT – 100 bar	$1,335.00	$1,217.00	$1,116.00	Add

For use with Type N Thermocouples

Order Code	Description	1 - 9	10 - 19	20+	Buy
946-585	6 pairs - 1/4" BSPT – 200 bar	$796.00	$726.00	$664.00	Add
946-588	12 pairs - 1/4" BSPT – 150 bar	$915.00	$834.00	$765.00	Add
946-591	20 pairs - 1/2" BSPT – 150 bar	$1,124.00	$1,024.00	$938.00	Add
946-594	30 pairs - 1/2" BSPT – 100 bar	$1,335.00	$1,217.00	$1,116.00	Add
945-585	6 pairs - 1/4" NPT – 200 bar	$796.00	$726.00	$664.00	Add
945-588	12 pairs - 1/4" NPT – 150 bar	$915.00	$834.00	$765.00	Add
945-591	20 pairs - 1/2" NPT – 150 bar	$1,124.00	$1,024.00	$938.00	Add
945-594	30 pairs - 1/2" NPT – 100 bar	$1,335.00	$1,217.00	$1,116.00	Add

For use with RTD's or Equipment Wiring

Order Code	Description	1 - 9	10 - 19	20+	Buy
946-572	12 cores (or 4 x 3 wire RTD's) - 1/4" BSPT – 200 bar	$796.00	$726.00	$664.00	Add
946-575	24 cores (or 8 x 3 wire RTD's) - 1/4" BSPT – 150 bar	$915.00	$834.00	$765.00	Add
946-578	40 cores (or 13 x 3 wire RTD's) - 1/2" BSPT – 150 bar	$1,124.00	$1,024.00	$938.00	Add
946-581	60 cores (or 20 x 3 wire RTD's) - 1/2" BSPT – 100 bar	$1,335.00	$1,217.00	$1,116.00	Add
945-572	12 cores (or 4 x 3 wire RTD's) - 1/4" NPT – 200 bar	$796.00	$726.00	$664.00	Add
945-575	24 cores (or 8 x 3 wire RTD's) - 1/4" NPT – 150 bar	$915.00	$834.00	$765.00	Add
945-578	40 cores (or 13 x 3 wire RTD's) - 1/2" NPT – 150 bar	$1,124.00	$1,024.00	$938.00	Add
945-581	60 cores (or 20 x 3 wire RTD's) - 1/2" NPT – 100 bar	$1,335.00	$1,217.00	$1,116.00	Add
