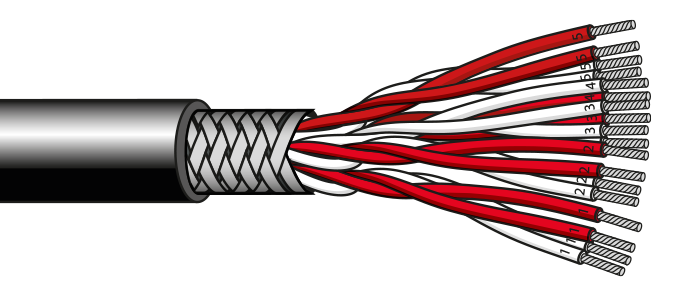

7/0.2mm PVC Insulated Multi Quad RTD Cable with Screen

7/0.2mm PVC Insulated Multi Quad RTD Cable with Screen view larger image
These PVC insulated RTD cables are ideal for extending multiple 4-wire Pt100 sensors in a single cable. They are supplied in either 25, 50, 100 or 200 metre lengths and are available with five, ten or fifteen Quad cores of stranded 7/0.2mm copper conductors. Cores are HR PVC insulated, Quads bunched together and numbered with a tinned copper wire braid and overall HR PVC sheath.
  • 5, 10 or 15 Quad cores of 7/0.2mm dia twisted conductors, HR PVC insulated
  • Tinned copper braid with overall HR PVC sheath
  • Temperature range: -30°C to +105°C
  • Quad colour code : 2 cores red and 2 cores white (numbered Quads)
  • Outer sheath colour: Black
  • Available in a variety of lengths
  • Easy connection to our range of sensors via our connector systems or the rear terminals on our indicators, controllers and programmers
The following types are available:

5 Quad (4 Cores) 7/0.2mm PVC Insulated RTD Extension Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
835-551 25 metre reel $555.00 $499.00 $455.00 Add
835-553 50 metre reel $948.00 $853.00 $776.00 Add
835-555 100 metre reel $1,583.00 $1,425.00 $1,296.00 Add
835-557 200 metre reel $3,003.00 $2,703.00 $2,461.00 Add

10 Quad (4 Cores) 7/0.2mm PVC Insulated RTD Extension Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
835-559 25 metre reel $913.00 $823.00 $749.00 Add
835-561 50 metre reel $1,560.00 $1,402.00 $1,275.00 Add
835-563 100 metre reel $2,588.00 $2,329.00 $2,118.00 Add
835-565 200 metre reel $4,944.00 $4,449.00 $4,050.00 Add

15 Quad (4 Cores) 7/0.2mm PVC Insulated RTD Extension Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
835-567 25 metre reel $1,223.00 $1,100.00 $1,001.00 Add
835-569 50 metre reel $2,091.00 $1,883.00 $1,712.00 Add
835-571 100 metre reel $3,512.00 $3,161.00 $2,876.00 Add
835-573 200 metre reel $6,607.00 $5,947.00 $5,410.00 Add
