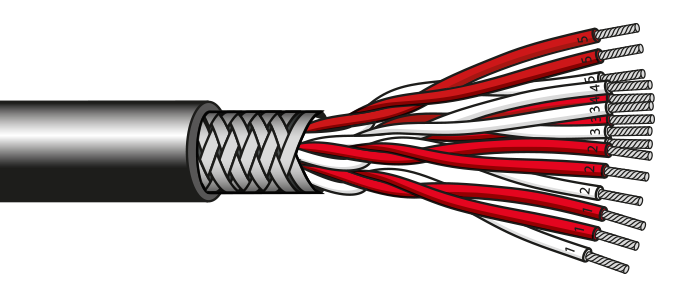

7/0.2mm PVC Insulated Multi Triad RTD Cable with Screen

These PVC insulated RTD cables are ideal for extending multiple 3-wire Pt100 sensors in a single cable. They are supplied in either 25, 50, 100 or 200 metre lengths and are available with five, ten or fifteen Triad cores of stranded 7/0.2mm copper conductors. Cores are HR PVC insulated, Triads bunched together and numbered with a tinned copper wire braid and overall HR PVC sheath.
  • 5, 10 or 15 Triad cores of 7/0.2mm dia twisted conductors, HR PVC insulated
  • Tinned copper braid with overall HR PVC sheath
  • Temperature range: -30°C to +105°C
  • Triad colour code : 2 cores red and 1 core white (numbered Triads)
  • Outer sheath colour: Black
  • Available in a variety of lengths
  • Easy connection to our range of sensors via our connector systems or the rear terminals on our indicators, controllers and programmers

5 Triad (3 Cores) 7/0.2mm PVC Insulated RTD Extension Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
835-501 25 metre reel $460.00 $414.00 $377.00 Add
835-503 50 metre reel $786.00 $707.00 $645.00 Add
835-505 100 metre reel $1,317.00 $1,186.00 $1,079.00 Add
835-507 200 metre reel $2,518.00 $2,266.00 $2,064.00 Add

10 Triad (3 Cores) 7/0.2mm PVC Insulated RTD Extension Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
835-509 25 metre reel $649.00 $585.00 $532.00 Add
835-511 50 metre reel $1,109.00 $998.00 $909.00 Add
835-513 100 metre reel $1,837.00 $1,654.00 $1,504.00 Add
835-515 200 metre reel $3,512.00 $3,161.00 $2,876.00 Add

15 Triad (3 Cores) 7/0.2mm PVC Insulated RTD Extension Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
835-517 25 metre reel $880.00 $793.00 $721.00 Add
835-519 50 metre reel $1,502.00 $1,352.00 $1,229.00 Add
835-521 100 metre reel $2,680.00 $2,412.00 $2,195.00 Add
835-523 200 metre reel $4,759.00 $4,283.00 $3,897.00 Add
