Stainless Steel Braided PFA Insulated Multipair Thermocouple Cable (250°C)

Stainless Steel Braided PFA Insulated Multipair Thermocouple Cable (250°C) view larger image

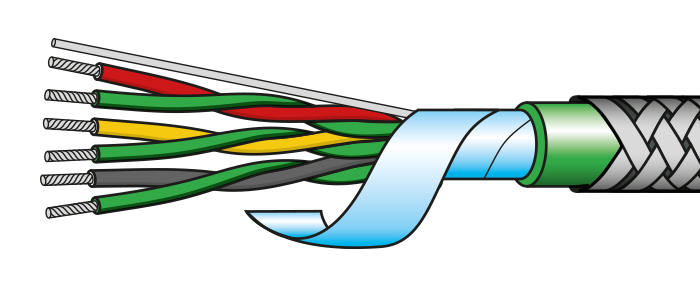

This range of PFA insulated stainless steel braided multipair thermocouple cables is available as a 7/0.2mm dia cable in 25, 50, 100 or 200 metre lengths in either thermocouple cable types KX, TX, JX and NX. Each conductor is insulated in PFA®, pairs are then twisted, bunched together, overall screened with aluminium Mylar® tape, PFA sheathed and then stainless steel braided overall. All conductors used are made from the relevant thermocouple material and meets IEC 60584-1 Class 2 : 2013 up to the maximum operating temperature of the insulation material. PFA insulated cable is ideal for higher temperature applications up to 250°C or for use at cryogenic temperatures down to -75°C and will withstand attack from virtually all known chemicals, oils and fluids. Available in either 2, 3, 4, 8, 12 or 16 pairs dependant on thermocouple type selected
  • PFA insulated with stainless steel braid
  • Temperature range: -75°C to +250°C
  • Resistant to chemicals, oils and fluids
  • Colour coded:- Negative legs colour coded for pair differentiation, please contact TC Direct for details if required
  • Available in a variety of lengths
  • Easy connection to other equipment via our range of connector systems or via the rear terminals on our range of indicators, controllers and programmers
    • The following types are available:

    Type KX - Stainless Steel Braided PFA Insulated Multipair Extension Cable

    Order Code Description 1 - 4 5 - 9 10+ Buy
    823-500 25 metre reel - 2 pair $660.00 $602.00 $551.00 Add
    823-502 50 metre reel - 2 pair $1,266.00 $1,152.00 $1,056.00 Add
    823-504 100 metre reel - 2 pair $2,385.00 $2,174.00 $1,990.00 Add
    823-506 200 metre reel - 2 pair $4,531.00 $4,128.00 $3,780.00 Add
    823-508 25 metre reel - 3 pair $866.00 $788.00 $721.00 Add
    823-510 50 metre reel - 3 pair $1,661.00 $1,514.00 $1,385.00 Add
    823-512 100 metre reel - 3 pair $3,084.00 $2,812.00 $2,572.00 Add
    823-514 200 metre reel - 3 pair $5,857.00 $5,340.00 $4,886.00 Add
    823-516 25 metre reel - 4 pair $1,125.00 $1,024.00 $938.00 Add
    823-518 50 metre reel - 4 pair $2,173.00 $1,981.00 $1,813.00 Add
    823-520 100 metre reel - 4 pair $3,993.00 $3,639.00 $3,330.00 Add
    823-522 200 metre reel - 4 pair $7,584.00 $6,912.00 $6,327.00 Add
    823-524 25 metre reel - 6 pair $1,340.00 $1,222.00 $1,119.00 Add
    823-526 50 metre reel - 6 pair $2,581.00 $2,352.00 $2,153.00 Add
    823-528 100 metre reel - 6 pair $4,758.00 $4,338.00 $3,971.00 Add
    823-530 200 metre reel - 6 pair $9,040.00 $8,240.00 $7,543.00 Add
    823-532 25 metre reel - 8 pair $1,426.00 $1,299.00 $1,190.00 Add
    823-534 50 metre reel - 8 pair $2,753.00 $2,508.00 $2,297.00 Add
    823-536 100 metre reel - 8 pair $5,112.00 $4,659.00 $4,266.00 Add
    823-538 200 metre reel - 8 pair $9,712.00 $8,851.00 $8,102.00 Add
    823-540 25 metre reel - 12 pair $2,045.00 $1,863.00 $1,706.00 Add
    823-542 50 metre reel - 12 pair $3,940.00 $3,593.00 $3,288.00 Add
    823-544 100 metre reel - 12 pair $7,317.00 $6,670.00 $6,104.00 Add
    823-546 200 metre reel - 12 pair $13,900.00 $12,670.00 $11,597.00 Add
    823-548 25 metre reel - 16 pair $2,198.00 $2,004.00 $1,835.00 Add
    823-550 50 metre reel - 16 pair $4,245.00 $3,869.00 $3,540.00 Add
    823-552 100 metre reel - 16 pair $7,883.00 $7,185.00 $6,577.00 Add
    823-554 200 metre reel - 16 pair $14,976.00 $13,649.00 $12,494.00 Add

    Type TX - Stainless Steel Braided PFA Insulated Multipair Extension Cable

    Order Code Description 1 - 4 5 - 9 10+ Buy
    823-556 25 metre reel - 2 pair $433.00 $394.00 $363.00 Add
    823-558 50 metre reel - 2 pair $834.00 $760.00 $696.00 Add
    823-560 100 metre reel - 2 pair $1,546.00 $1,410.00 $1,291.00 Add
    823-562 200 metre reel - 2 pair $2,937.00 $2,676.00 $2,451.00 Add
    823-564 25 metre reel - 3 pair $660.00 $602.00 $551.00 Add
    823-566 50 metre reel - 3 pair $1,269.00 $1,158.00 $1,059.00 Add
    823-568 100 metre reel - 3 pair $2,355.00 $2,146.00 $1,966.00 Add
    823-570 200 metre reel - 3 pair $4,472.00 $4,074.00 $3,732.00 Add
    823-572 25 metre reel - 4 pair $905.00 $824.00 $753.00 Add
    823-574 50 metre reel - 4 pair $1,745.00 $1,590.00 $1,457.00 Add
    823-576 100 metre reel - 4 pair $3,230.00 $2,944.00 $2,694.00 Add
    823-578 200 metre reel - 4 pair $6,135.00 $5,591.00 $5,118.00 Add
    823-580 25 metre reel - 6 pair $1,312.00 $1,195.00 $1,096.00 Add
    823-582 50 metre reel - 6 pair $2,066.00 $1,883.00 $1,722.00 Add
    823-584 100 metre reel - 6 pair $3,807.00 $3,471.00 $3,177.00 Add
    823-586 200 metre reel - 6 pair $7,230.00 $6,592.00 $6,034.00 Add

    Type JX - Stainless Steel Braided PFA Insulated Multipair Extension Cable

    Order Code Description 1 - 4 5 - 9 10+ Buy
    823-588 25 metre reel - 2 pair $433.00 $394.00 $363.00 Add
    823-590 50 metre reel - 2 pair $834.00 $760.00 $696.00 Add
    823-592 100 metre reel - 2 pair $1,546.00 $1,410.00 $1,291.00 Add
    823-594 200 metre reel - 2 pair $2,937.00 $2,677.00 $2,451.00 Add
    823-596 25 metre reel - 3 pair $660.00 $602.00 $551.00 Add
    823-598 50 metre reel - 3 pair $1,269.00 $1,158.00 $1,059.00 Add
    823-600 100 metre reel - 3 pair $2,355.00 $2,146.00 $1,966.00 Add
    823-602 200 metre reel - 3 pair $4,471.00 $4,077.00 $3,732.00 Add
    823-604 25 metre reel - 4 pair $905.00 $824.00 $753.00 Add
    823-606 50 metre reel - 4 pair $1,745.00 $1,590.00 $1,457.00 Add
    823-608 100 metre reel - 4 pair $3,230.00 $2,944.00 $2,694.00 Add
    823-610 200 metre reel - 4 pair $6,135.00 $5,591.00 $5,118.00 Add
    823-612 25 metre reel - 6 pair $1,312.00 $1,195.00 $1,096.00 Add
    823-614 50 metre reel - 6 pair $2,066.00 $1,883.00 $1,722.00 Add
    823-616 100 metre reel - 6 pair $3,807.00 $3,471.00 $3,177.00 Add
    823-618 200 metre reel - 6 pair $7,230.00 $6,592.00 $6,034.00 Add

    Type NX - Stainless Steel Braided PFA Insulated Multipair Extension Cable

    Order Code Description 1 - 4 5 - 9 10+ Buy
    823-620 25 metre reel - 2 pair $769.00 $701.00 $643.00 Add
    823-622 50 metre reel - 2 pair $1,486.00 $1,355.00 $1,241.00 Add
    823-624 100 metre reel - 2 pair $2,760.00 $2,517.00 $2,302.00 Add
    823-626 200 metre reel - 2 pair $5,240.00 $4,780.00 $4,374.00 Add
    823-628 25 metre reel - 3 pair $997.00 $909.00 $831.00 Add
    823-630 50 metre reel - 3 pair $1,921.00 $1,751.00 $1,604.00 Add
    823-632 100 metre reel - 3 pair $3,561.00 $3,246.00 $2,971.00 Add
    823-634 200 metre reel - 3 pair $6,765.00 $6,166.00 $5,643.00 Add
    823-636 25 metre reel - 4 pair $1,223.00 $1,115.00 $1,021.00 Add
    823-638 50 metre reel - 4 pair $2,355.00 $2,146.00 $1,966.00 Add
    823-640 100 metre reel - 4 pair $4,366.00 $3,980.00 $3,644.00 Add
    823-642 200 metre reel - 4 pair $8,294.00 $7,562.00 $6,920.00 Add
    823-644 25 metre reel - 6 pair $1,652.00 $1,506.00 $1,378.00 Add
    823-646 50 metre reel - 6 pair $3,178.00 $2,898.00 $2,653.00 Add
    823-648 100 metre reel - 6 pair $5,894.00 $5,371.00 $4,917.00 Add
    823-650 200 metre reel - 6 pair $11,196.00 $10,204.00 $9,337.00 Add
