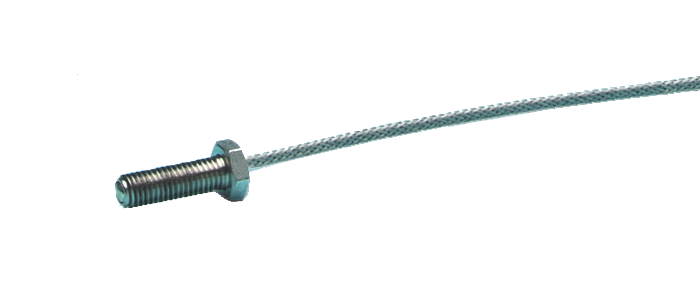

Bolt Thermocouple
Ideal for surface and vessel temperature sensing. These bolt thermocouples are designed to screw directly into the workpiece. They are available in several bolt sizes and are made from stainless steel. Suitable up to 250ºC.
- Thermocouple types K, T or J
- S/S Bolts: Either M8 x 1.25mm, M10 x 1.5mm or M12 x 1.75mm (25mm long below hexagon). Other bolt sizes are available, please contact us for details
- Grounded Junction
- Leads: 2 metres fibreglass insulated with stainless steel overbraid
- Operating range -30ºC to +250ºC
The following types are available:
| Order Code |
Description |
1 - 9
|
10 - 24
|
25+
|
Buy |
| 601-730 |
Type K Bolt Thermocouple, M8 x 25mm x 1.25mm Pitch |
$63.00 |
$58.00 |
$53.00 |
Add
|
| 601-733 |
Type K Bolt Thermocouple, M10 x 25mm x 1.5mm Pitch |
$63.00 |
$58.00 |
$53.00 |
Add
|
| 601-736 |
Type K Bolt Thermocouple, M12 x 25mm x 1.75mm Pitch |
$63.00 |
$58.00 |
$53.00 |
Add
|
| 601-740 |
Type T Bolt Thermocouple, M8 x 25mm x 1.25mm Pitch |
$63.00 |
$58.00 |
$53.00 |
Add
|
| 601-743 |
Type T Bolt Thermocouple, M10 x 25mm x 1.5mm Pitch |
$63.00 |
$58.00 |
$53.00 |
Add
|
| 601-746 |
Type T Bolt Thermocouple, M12 x 25mm x 1.75mm Pitch |
$63.00 |
$58.00 |
$53.00 |
Add
|
| 601-750 |
Type J Bolt Thermocouple, M8 x 25mm x 1.25mm Pitch |
$63.00 |
$58.00 |
$53.00 |
Add
|
| 601-753 |
Type J Bolt Thermocouple, M10 x 25mm x 1.5mm Pitch |
$63.00 |
$58.00 |
$53.00 |
Add
|
| 601-756 |
Type J Bolt Thermocouple, M12 x 25mm x 1.75mm Pitch |
$63.00 |
$58.00 |
$53.00 |
Add
|
| 601-760 |
Type N Bolt Thermocouple, M8 x 25mm x 1.25mm Pitch |
$63.00 |
$58.00 |
$53.00 |
Add
|
| 601-763 |
Type N Bolt Thermocouple, M10 x 25mm x 1.5mm Pitch |
$63.00 |
$58.00 |
$53.00 |
Add
|
| 601-766 |
Type N Bolt Thermocouple, M12 x 25mm x 1.75mm Pitch |
$63.00 |
$58.00 |
$53.00 |
Add
|
