Adjustable Ring Thermocouple

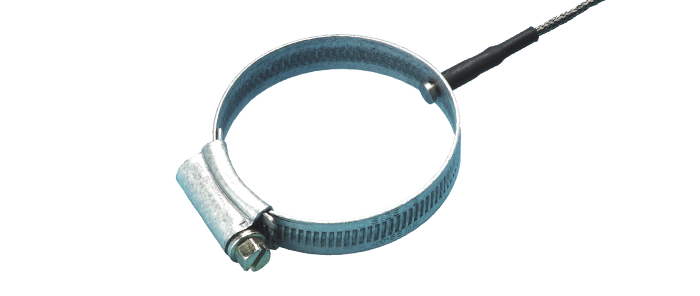

Adjustable Ring Thermocouple view larger image
For pipe temperature measurement up to 400ºC. They are available in a number of sizes to suit your diameter of pipe. These sensors make direct contact with the pipe for maximum performance and have grounded junctions.
  • Thermocouple types K, T or J available
  • Versions for pipes 32-50mm, 50-150mm or 150-300mm offered
  • Grounded junction
  • Leads: 2 metres fibreglass insulated with stainless steel overbraid
  • Operating range: -100ºC to 400ºC
The following types are available:

Adjustable Ring Thermocouple

Order Code Description 1 - 9 10 - 24 25+ Buy
601-458 Ring Thermocouple Type K 13-20mm $42.20 $38.60 $35.20 Add
601-459 Ring Thermocouple Type K 20-30mm $45.00 $41.10 $37.60 Add
601-460 Ring Thermocouple Type K 32-40mm $46.30 $42.20 $38.70 Add
601-461 Ring thermocouple Type K 32-50mm $48.00 $43.80 $40.00 Add
601-462 Ring Thermocouple Type K 40-50mm $49.20 $44.90 $41.20 Add
601-464 Ring thermocouple Type K 50-150mm $54.00 $48.70 $44.60 Add
601-467 Ring thermocouple Type K 150-300mm $60.00 $55.00 $49.20 Add
601-468 Ring Thermocouple Type T 13-20mm $42.20 $38.60 $35.20 Add
601-469 Ring Thermocouple Type T 20-30mm $45.00 $41.10 $37.60 Add
601-470 Ring thermocouple Type T 32-50mm $48.00 $43.80 $40.00 Add
601-471 Ring Thermocouple Type T 32-40mm $46.30 $42.20 $38.70 Add
601-472 Ring Thermocouple Type T 40-50mm $49.20 $44.90 $41.20 Add
601-473 Ring thermocouple Type T 50-150mm $54.00 $48.70 $44.60 Add
601-476 Ring thermocouple Type T 150-300mm $60.00 $55.00 $49.20 Add
601-477 Ring Thermocouple Type J 13-20mm $42.20 $38.60 $35.20 Add
601-478 Ring Thermocouple Type J 20-30mm $45.00 $41.10 $37.60 Add
601-479 Ring thermocouple Type J 32-50mm $48.00 $43.80 $40.00 Add
601-480 Ring Thermocouple Type J 32-40mm $46.30 $42.20 $38.70 Add
601-481 Ring Thermocouple Type J 40-50mm $49.20 $44.90 $41.20 Add
601-482 Ring thermocouple Type J 50-150mm $54.00 $48.70 $44.60 Add
601-485 Ring thermocouple Type J 150-300mm $60.00 $55.00 $49.20 Add
