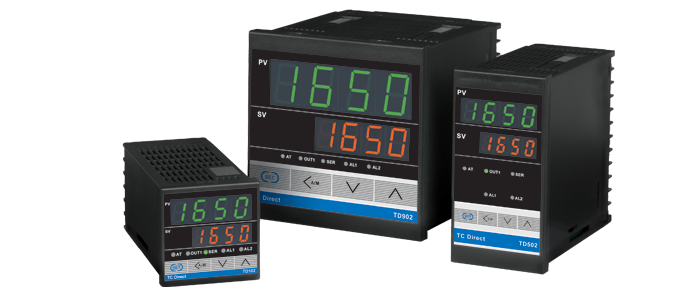

Dual Display Temperature Controllers

Dual Display Temperature Controllers view larger image
This new range of powerful and versatile yet low cost PID controllers have a dual 4 digit display of process and set values and can be ranged by the user for a variety of inputs and alarms. These auto tuning controllers also feature continuous self tuning which in the majority of applications sets the controller up for optimum performance.
  • PID Auto tuning or On/Off can be selected
  • 1/16 DIN (48x48x100mm deep)
    1/8 DIN (96x48x100mm deep)
    1/4 DIN (96x96x100mm deep)
  • 4 digit dual LED display
  • Accuracy: Typically better than ±0.3% FSV
  • 100-240V AC as standard
  • Customer rangeable for Type K, J, T, N, E, R, S and B thermocouple or Pt100 inputs
  • Temperature (process or deviation) alarms can be easily configured
  • Relay or Solid State Relay drive (SSR) control output
  • Non volatile memory
  • 2 year warranty
The following types are available:

1/16 DIN - 48 x 48 x 100mm deep

Order Code Description 1 - 4 5 - 9 10+ Buy
304-100 2 alarms - Relay output $154.00 $146.00 $138.00 Add
304-103 2 alarms - SSR output $154.00 $146.00 $138.00 Add

1/8 DIN - 96 x 48 x 100mm deep

Order Code Description 1 - 4 5 - 9 10+ Buy
304-200 2 alarms - Relay output $154.00 $146.00 $138.00 Add
304-203 2 alarms - SSR output $154.00 $146.00 $138.00 Add

1/4 DIN - 96 x 96 x 100mm deep

Order Code Description 1 - 4 5 - 9 10+ Buy
304-300 2 alarms - Relay output $154.00 $146.00 $138.00 Add
304-303 2 alarms - SSR output $154.00 $146.00 $138.00 Add
